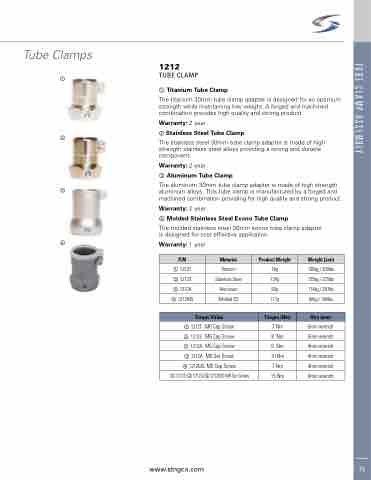

Page 73 - STG Corp 2019

Tube Clamps
1
2
3
4
1212
TUBE CLAMP
1 Titanium Tube Clamp
The titanium 30mm tube clamp adapter is designed for an optimum strength while maintaining low weight. A forged and machined combination provides high quality and strong product.
Warranty: 2 year
2 Stainless Steel Tube Clamp
The stainless steel 30mm tube clamp adapter is made of high strength stainless steel alloys providing a strong and durable component.
Warranty: 2 year
3 Aluminum Tube Clamp
The aluminum 30mm tube clamp adapter is made of high strength aluminum alloys. This tube clamp is manufactured by a forged and machined combination providing for high quality and strong product.
Warranty: 2 year
4 Molded Stainless Steel Econo Tube Clamp
The molded stainless steel 30mm econo tube clamp adapter is designed for cost effective application.
Warranty: 1 year
P/N
Material
Product Weight
Weight Limit
1 1212T
Titanium
79g
136kg / 300lbs
2 1212S
Stainless Steel
128g
125kg / 275lbs
3 1212A
Aluminum
83g
114kg / 250lbs
4 1212MS
Molded SS
117g
90kg / 198lbs
Torque Value
Torque (Nm)
Hex (mm)
1 1212T M6 Cap Screw
7 Nm
5mm wrench
2 1212S M6 Cap Screw
8 Nm
5mm wrench
3 1212A M5 Cap Screw
6 Nm
4mm wrench
3 1212A M8 Set Screw
10 Nm
4mm wrench
4 1212MS M5 Cap Screw
7 Nm
4mm wrench
11212T/21212S/41212MS M8 Set Screw
15 Nm
4mm wrench
www.stngco.com
75
TUBE CLAMP ASSEMBLY
